ROUND ONE COLOURS ARE BACK!

If you missed out on the iconic round 2 colours of HIBIKI, now's your chance to lock one down.

We've got all four of the OG colours in stock - with an updated 'FROSTED' polycarbonate base.

Quantities are extremely limited and won't last long.

SCROLL DOWN FOR IMAGES

Meet HIBIKI, our 65% keyboard.

HIBIKI is a 65% keyboard with a strikingly curved profile and a visually stunning injection-moulded polycarbonate base.

BUILD GUIDE

• 65% layout
• 6-degree typing angle
• Isolation mount using 1.6mm PORON foam pads with a leaf spring plate
• Aluminium Top
• Machined, bead blasted, and then either anodised/e-coated
• Polycarbonate Base
• Thick injection-moulded Polycarbonate, post-machined.
• wilba.tech WT65-H3-HIBI PCB
• Supports full and split backspace, 7U and 6.25U spacebar
• Over-current and ESD protection
• Kailh hot-swap sockets rated at 5,000 cycles
• QMK and VIA support
• 4.0mm PORON foam sheet compressed between PCB and plate to optionally change the sound profile by filtering out higher frequencies to create a warmer tone
• OPTIONAL: additional solderable PCB to support ISO, 6.25U+5 mods, stepped capslock

NOTES:

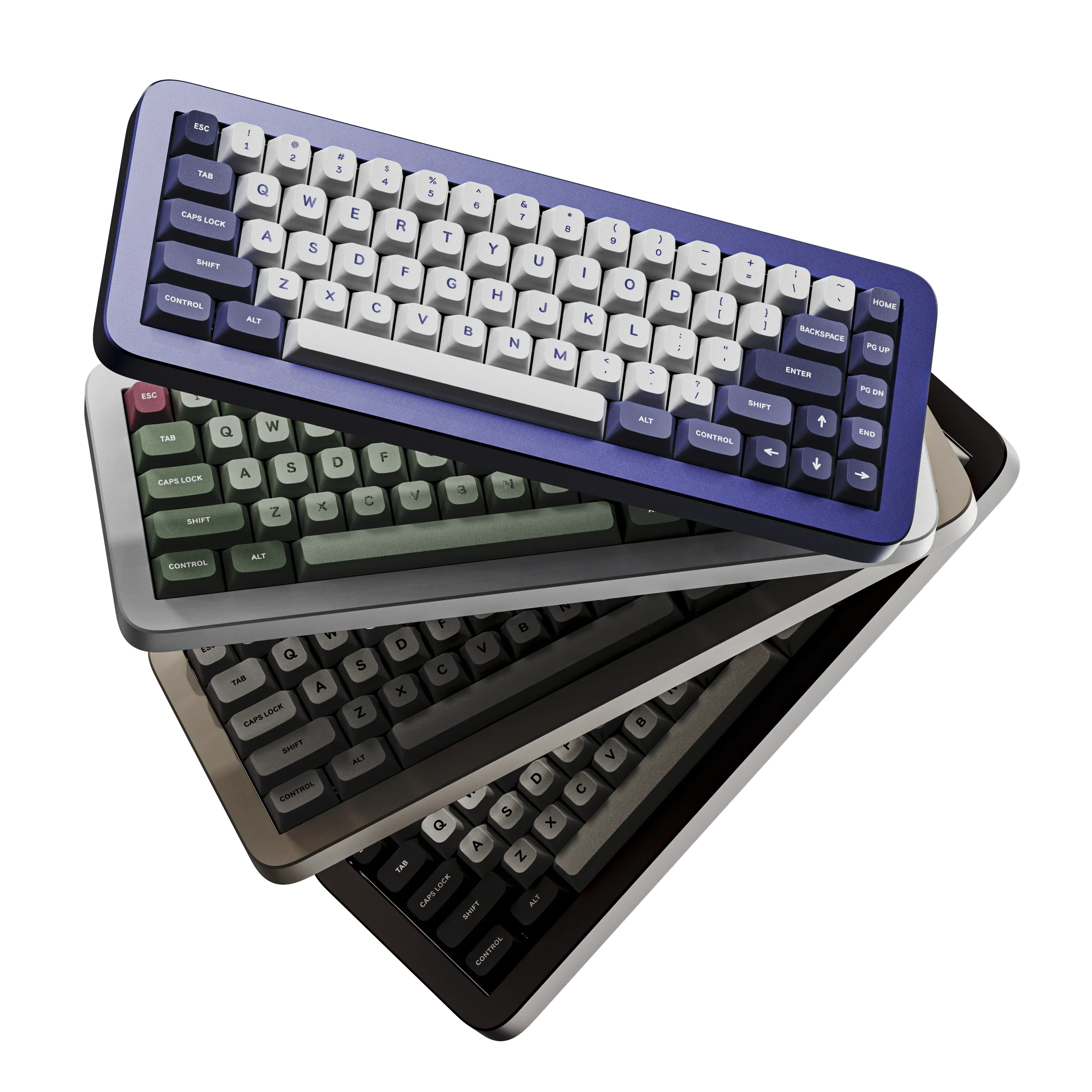

Renders show a clear base (from R1). Please refer to images for accurate representation of the frosted base.

This product contains a mix of machined and injection moulded parts.

Please click here to see what to expect from our off-tooled injection moulded, post-finished parts.

Overall Dimensions

Hotswap Layout Options

CONTENTS

• 1 x Aluminium top

• 1 x Polycarbonate base (frosted)

• 1 x wilba.tech WT65-H3-HIBI PCB (hotswap)

• 1 x 1.5mm polycarbonate plate

• 1 x PORON sheet (Gaskets)

• 1 x PORON sheet - Plate foam

• 4 x HIBI rubber feet

• 8 x M2.5*12 mm Anodised Aluminium Hex Socket Head Screw

• 4 x M2 X 4 mm Stainless Steel Torx Socket Head Screw

• 6 x M2 X 3 mm Stainless Steel Torx Countersunk Screw

• 6 x M2 X 3 mm Stainless Steel Torx Socket Head Screw

• 6 x M2 X 3.5 mm Stainless Steel Spacer

• HIBI travel case (purple)


This product is sold without switches, stabilisers, keycaps or USB cables.
