HIBIKI (EXTRAS)

Meet HIBIKI, our 65% keyboard.

HIBIKI is a 65% keyboard with a strikingly curved profile and a visually stunning injection-moulded polycarbonate base.



BUILD GUIDE


Important details:

  • 65% layout
  • 6-degree typing angle

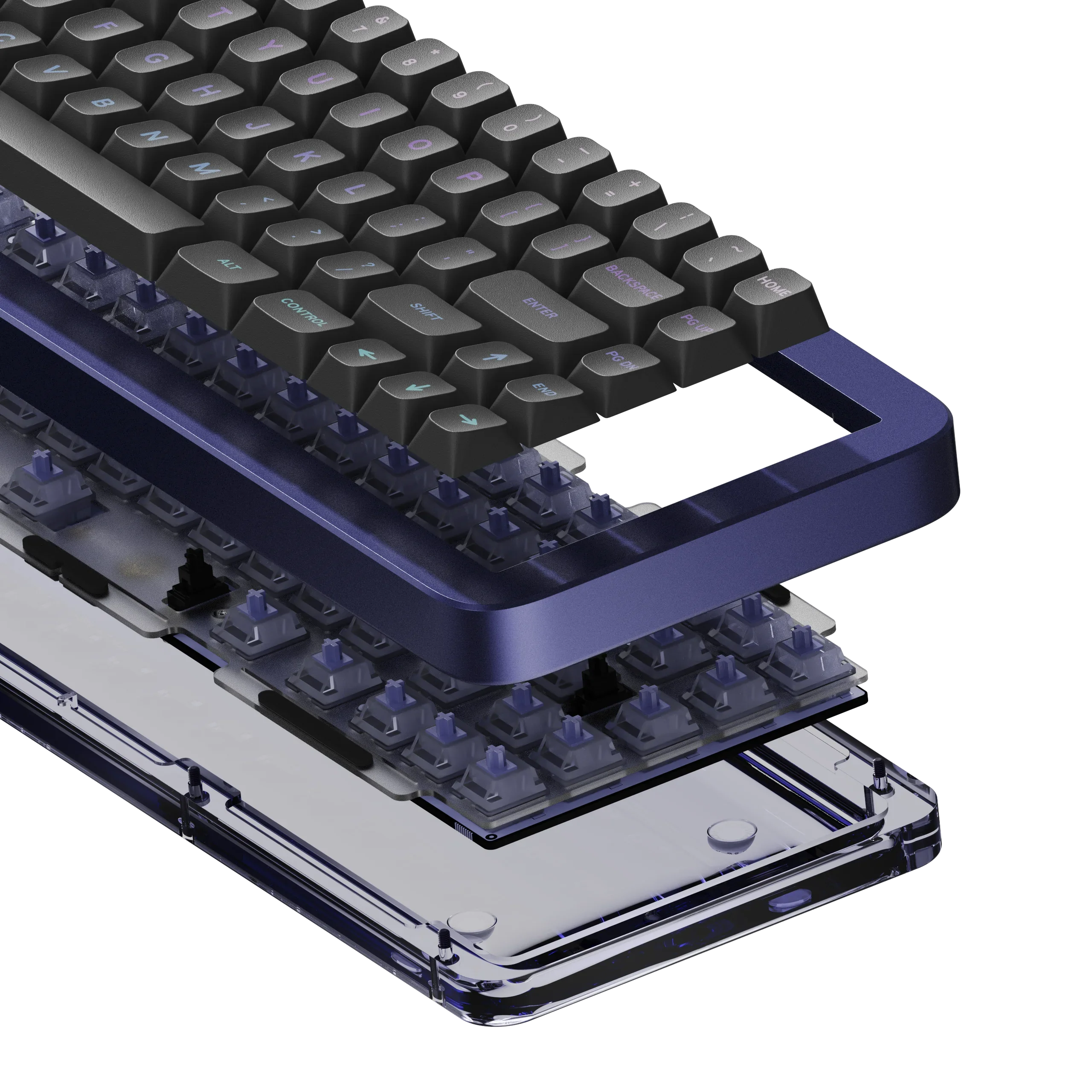

  • Isolation mount using 1.6mm PORON foam pads with a leaf spring plate
  • Aluminium Top
    • Machined, bead blasted and then either anodised/e-coated
  • Polycarbonate Base
    • Thick injection-moulded Polycarbonate, post-machined to remove markings and finished with additional polishing

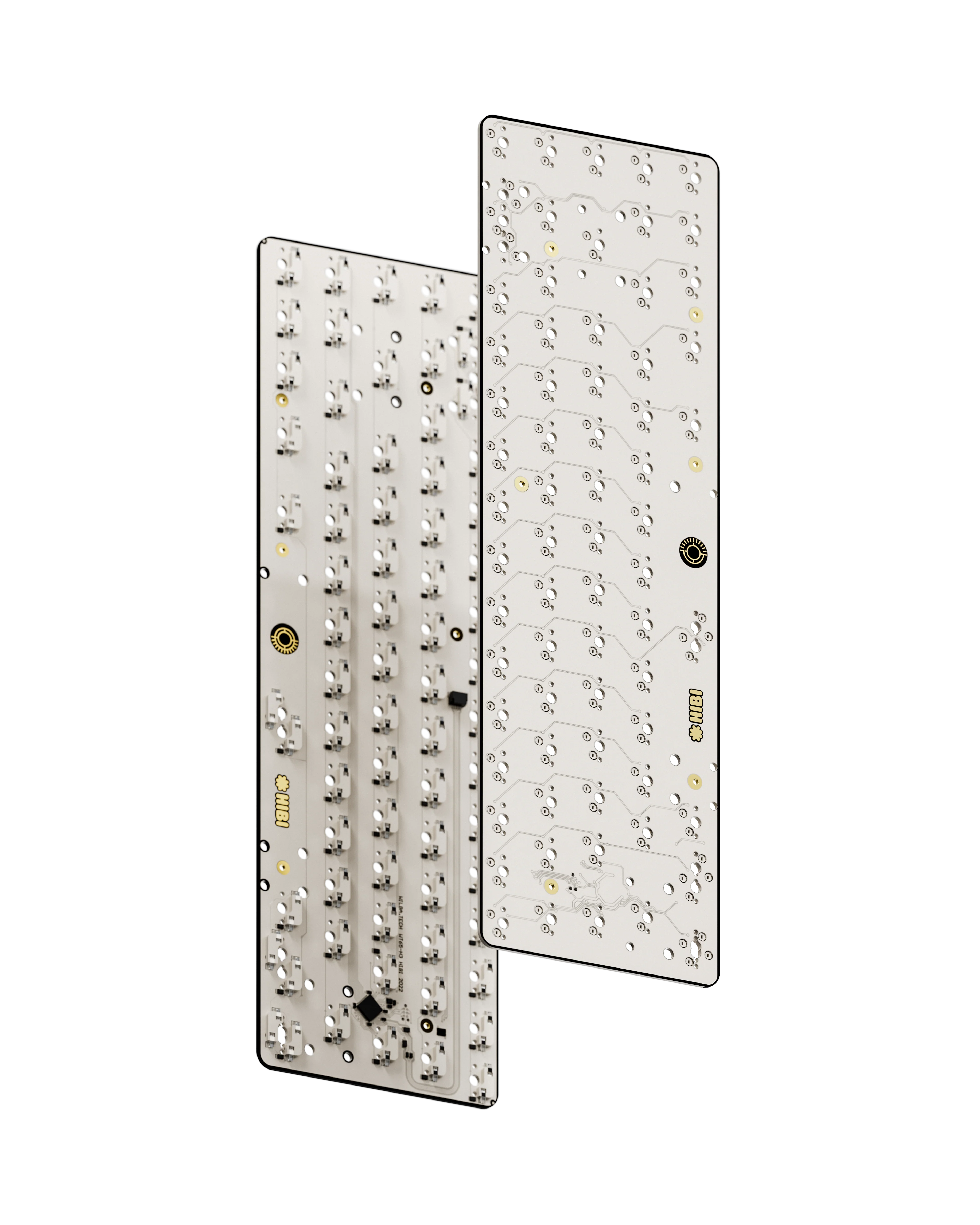

  • wilba.tech WT65-H3-HIBI PCB
    • Supports full and split backspace, 7U and 6.25U spacebar
    • Over-current and ESD protection
    • Kailh hot-swap sockets rated at 5,000 cycles
    • QMK and VIA support
  • 4.0mm PORON foam sheet compressed between PCB and plate to optionally change the sound profile by filtering out higher frequencies to create a warmer tone
  • OPTIONAL: additional solderable PCB to support ISO, 6.25U+5 mods, stepped capslock





HIBIKI is now fully-tooled

We've spent months tooling HIBIKI, with several rounds of prototypes prior to launching our pre-order. This allowed us to test, feel, review, and tweak the final product before launching it for sale.

The other upside - manufacturing times will be quicker. All tooling, such as the Polycarbonate base and custom feet, are completed and production-ready.

Please click here to see what to expect from our off-tooled injection moulded, post-finished parts!



Overall Dimensions

Hotswap Layout Options
    Contents

    • 1 x Aluminium top

    • 1 x Polycarbonate base

    • 1 x wilba.tech WT65-H3-HIBI PCB (hotswap)

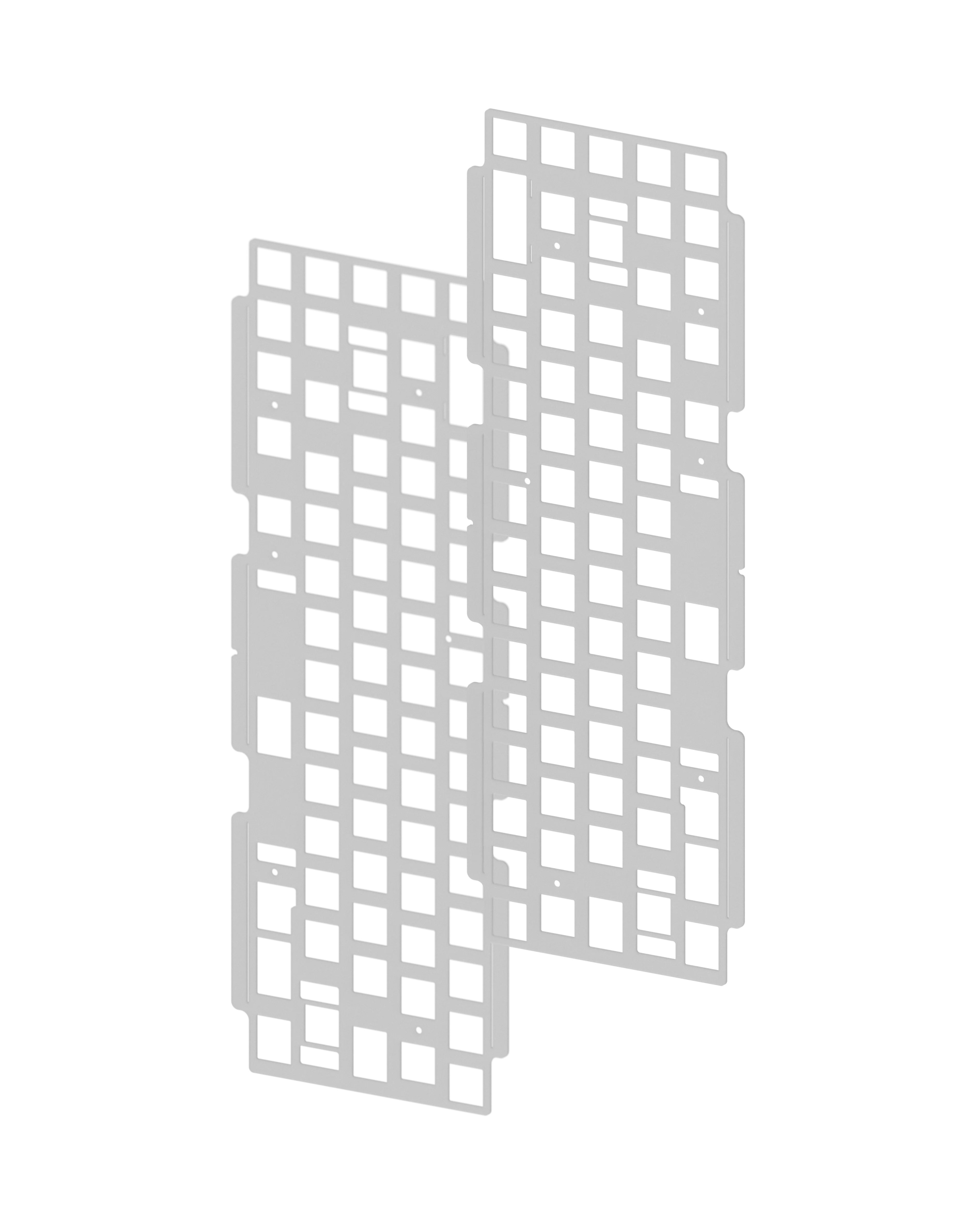

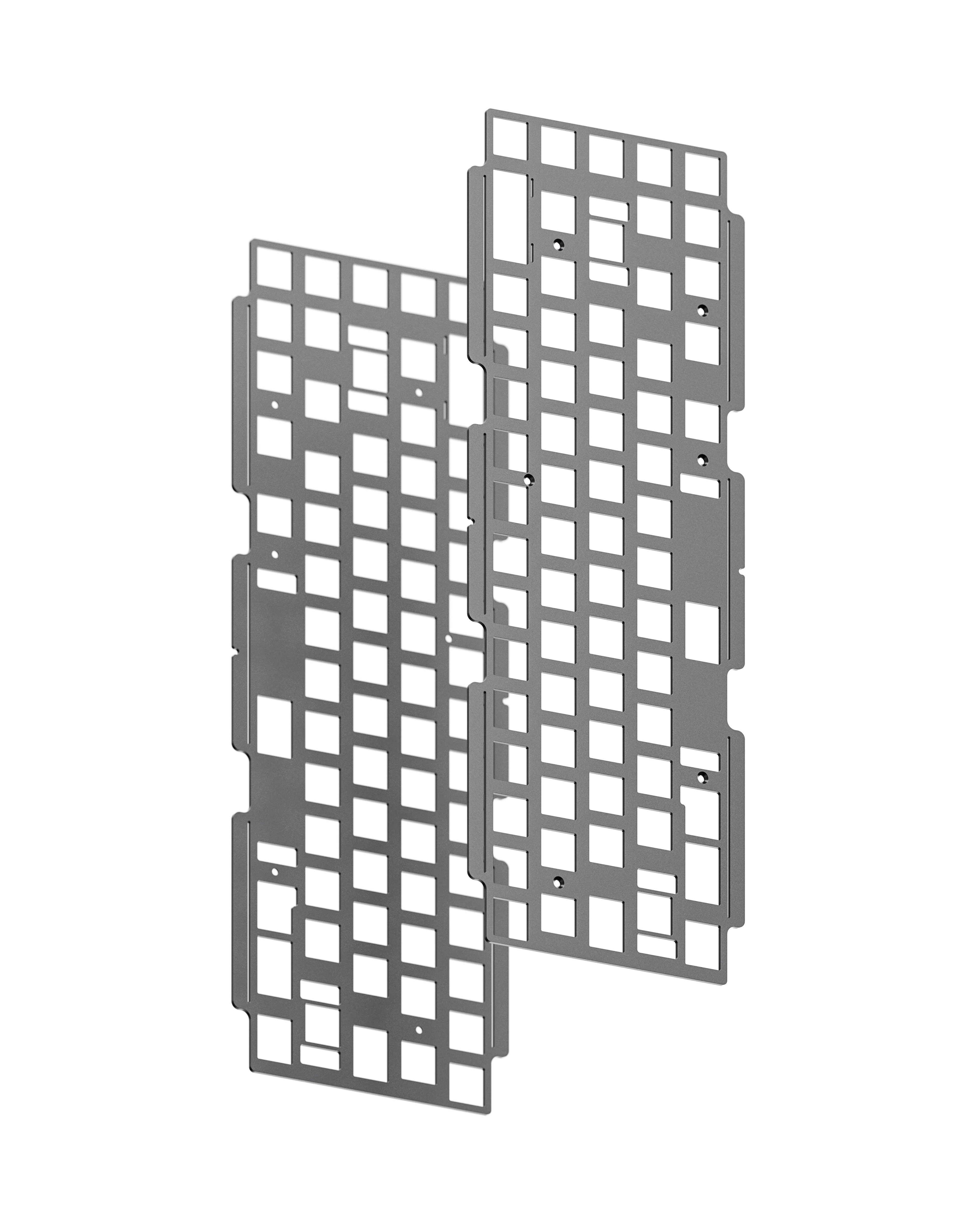

    • 1 x 1.5mm polycarbonate plate

    • 1 x PORON sheet (Gaskets)

    • 1 x PORON sheet - Plate foam

    • 4 x HIBI rubber feet

    • 8 x M2.5*12 mm Anodised Aluminium Hex Socket Head Screw

    • 4 x M2 X 4 mm Stainless Steel Torx Socket Head Screw

    • 6 x M2 X 3 mm Stainless Steel Torx Countersunk Screw

    • 6 x M2 X 3 mm Stainless Steel Torx Socket Head Screw

    • 6 x M2 X 3.5 mm Stainless Steel Spacer

    • HIBI travel case (purple)

    • HIBI screwdriver

    This product is sold without switches, stabilisers, keycaps or USB cables.
